YHZS75 Mobile Batching Plant Zoom in
  • Name:

    YHZS75 Mobile Batching Plant

  • Minimum Order Quantity:1 Set/Sets
  • Supply Ability:15 Set/Sets per Month
  • Payment Terms:L/C,T/T

Product Description

YHZS75 mobile concrete plant with running system is special construction concrete equipment designed independently by our company. It can be installed quickly on site. This mixing plant integrate mixer, batching system, running system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment into together, installing on a transport chassis. We can deliver YHZS A series concrete plant to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability. By absorbing new technologies from overseas and domestic, the mobile concrete batching plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc.

Model Number: YHZS75 Mobile Batching Plant
Condition:New
Theoretical Productivity:75m3
Volume of Aggregate Bin:4x6 m3(number of bins 2~4 optional)
Aggregate Diameter:≤80mm
Discharging Height:3.8m
Power:380v/50Hz
Total Weight:32000kg (without optional parts)

Packaging Delivery of YHZS75 mobile concrete batching plant for sale :

Packaging Detail: Standard Export Packing
Delivery Detail: 30 days after receiving the deposit

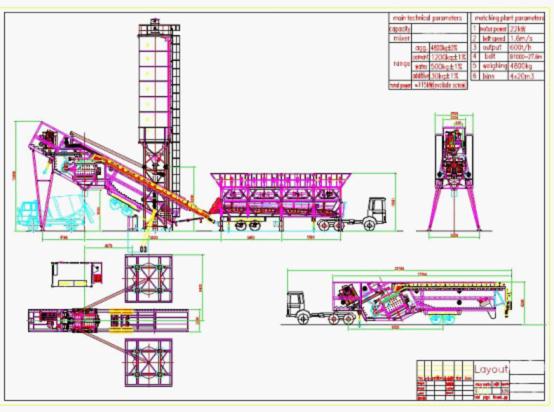

The layout for YHZS75 complete mobile batching plant:

YHZS75 Mobile Batching Plant

Item

YHZS75(3.8m)mobile concrete batching plant for sale

theoretical productivity

75m3/h

weighing scale

concrete

3750kg



cement

900kg



water

450kg



liquid addictive

45kg

overall power

about 105KW

(optional parts not included)

power source

380V/50HZ

discharging height

3.8m

overall weight

27t(optional parts not included)

trail speed

≤40km/h

specification

(LxWxH)

during work

18.1x3.6x8.2m



during transportation

18.6x2.4x4.35m
