YHZS60 Mobile Batching Plant Zoom in
  • Name:

    YHZS60 Mobile Batching Plant

  • Minimum Order Quantity:1 Set/Sets
  • Supply Ability:15 Set/Sets per Month
  • Payment Terms:L/C,T/T

Product Description

YHZS60 modular mobile concrete Batching plant  also called YHZS60 mobile batching plant is a special construction concrete equipment designed by our company as module. It is applied for airport way, wharf, road, bridge and so on, It can also be used for the large and emergency repair construction operation. It can be installed quickly on site.

The configuration of YHZS60 mobile batching plant:

This YHZS60 portable concrete mixing plant is consisted by mixer, batching system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment, and they are designed as module .So We can deliver YHZS series concrete plant easily by container, and install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility.

The layout for YHZS60 complete mobile batching plant:





The parameter of YHZS60 mobile batching plant:

Item

YHZS60(3.8m) mobile batching plant

theoretical productivity

60m3/h

weighing scale

concrete

3000kg



cement

720kg



water

360kg



liquid addictive

36kg

overall power

about 85KW

(optional parts not included)

power source

380V/50HZ

discharging height

3.8m

overall weight

24t(optional parts not included)

trail speed

≤40km/h

specification

(LxWxH)

during work

17.7x3.6x8.2m



during transportation

18.3x2.4x4.35m



Working condition of YHZS60 mobile batching plant:

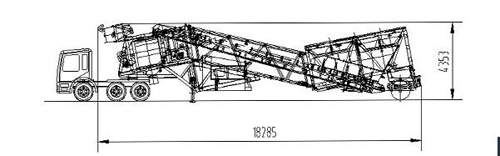

Travel condition of YHZS60 mobile batching plant:
