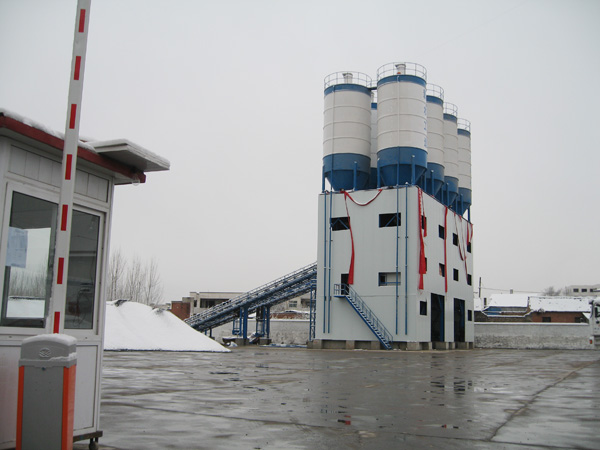

The structure and device equipment of HZS180 stationary concrete batching plant
Writer:Admin Time:17/05/03The main structure of the HZS180 stationary concrete batching plant as follow:
1. The lower column, specifications for the 5500 * 5000, the number is 1 set
2. Mixing platform, the number is 1 set
3. The upper deck, the number is 1 set
4 ingredients layer platform, the number is 1 set
5. Feeding roof truss, the number is 1 set
6. Peripheral and skeleton, the number is 1 set
7.Ladder, small platform, railing
HZS180 stationary concrete batching plant aggregate ingredients station configuration is as follows:
HZS180 stationary concrete batching plant aggregate ingredients station configuration is as follows:
1. The in-line bin, the specification is 4 * 30 m3, quantity is 1 set
2. The arc door feeder, number is 8 sets
3. Weighing hopper, the specification is 3000 kg, the number is 4 sets
4. The cylinder, the specification is SCU100, quantity is 12 sets
5. Vibrator, number 2 only
6. The sensor, the specification is CFCKN - 1, the quantity is 12 sets
HZS180 concrete batching plant other configuration information, such as: mixing host, drive motor, reducer, the level of tape machine, feeding tape machine, aggregate and discharge device, cement batching device, fly ash ingredients, water weighing device, Adhesive weighing device, gas control system, the main station peripherals, computer control system, recovery dust collector, concrete hopper, operating room and bracket, screw conveyor, dust and broken arch, cement warehouse, concrete pump.
Our company are one of leading construction machinery manufacturer in China,any inquiry or interests contact me freely.
